Product description

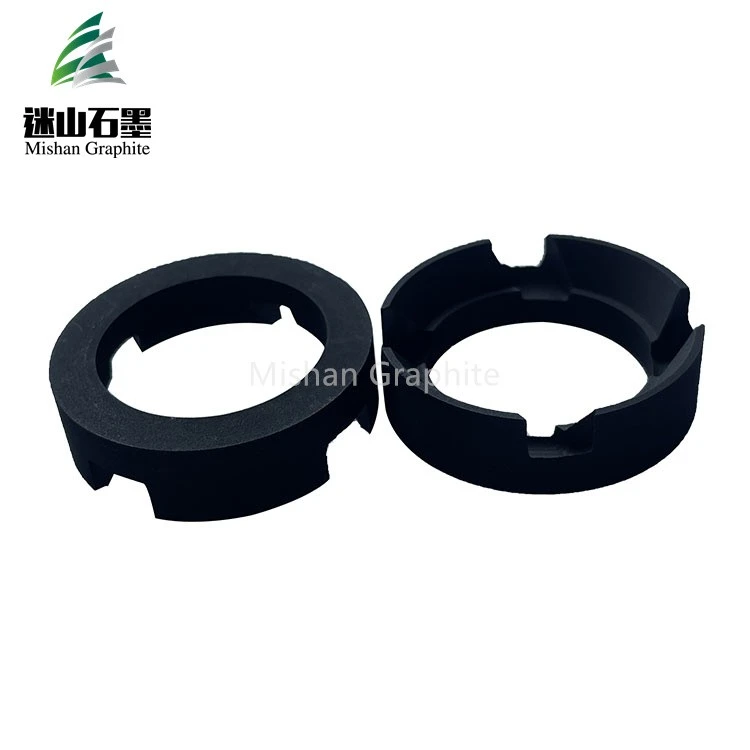

Carbon graphite bearing frame are increasingly being used in bearings, becoming a critical component.
Under harsh operating conditions such as high speed, high temperature, strong corrosion, or difficult lubrication, carbon graphite bearings, with their unique self-lubricating properties, excellent chemical corrosion resistance, and good high-temperature stability, become indispensable critical components. As the core load-bearing component of these bearings, the performance of the bearing frame directly determines the reliability of the entire system. Since they are mostly non-standard parts, the price of carbon graphite bearing cages is not fixed, mainly fluctuating around two core dimensions: customized materials and precision machining processes.

1. Material Selection: The Cornerstone of Performance and Cost
The price of a carbon graphite bearing frame primarily depends on the base material formula and impregnation process. Different grades of materials have significantly different costs. For example, ordinary pure carbon graphite materials are relatively inexpensive but have limited strength; however, if materials impregnated with epoxy resin, furan resin, or metals such as Babbitt metal or copper are used to improve mechanical strength, thermal conductivity, or further reduce the friction coefficient, the cost will increase significantly. The choice of material directly corresponds to the wear life, load capacity, and applicable environment (such as acidity, alkalinity, and temperature) of the final product, and is the basis for pricing.

2. Machining Process: The Value of Precision and Complexity
As a precision custom part, the machining process is another major price-determining factor. First, the higher the dimensional accuracy and geometric tolerance requirements, the greater the reliance on processing equipment (such as CNC machine tools) and skilled technicians, and the higher the risk of defective products, thus increasing costs. Second, surface roughness requirements also affect the price; bearing cages used in precision instruments and high-speed applications require a mirror-like finish to reduce friction, which requires additional polishing and other processes. Finally, structural complexity, such as whether special oil grooves, holes, threads, or irregular structures need to be machined, will increase programming difficulty, tool wear, and working hours, thereby driving up the total cost.

3. Deducing Value and Price Structure from Application Scenarios
Understanding its price requires considering its value in bearing applications. In dry or oil-free lubrication environments, the self-lubricating properties of carbon graphite bearing frame ensure long-term stable operation of equipment, eliminating the need for complex lubrication systems. Although the initial investment is higher, the total life cycle cost is lower. In chemical pumps and high-temperature fans, its corrosion resistance and high-temperature resistance prevent frequent shutdowns for replacement, and the resulting increase in production efficiency far outweighs its manufacturing cost. Therefore, the customized price is essentially an investment in its "application benefits."

4. Balancing Choices: Seeking the Optimal Solution Between Performance and Budget
When inquiring about and customizing products, users should communicate thoroughly with the manufacturer, clearly defining their operating conditions (load, speed, medium, temperature). It's unnecessary to blindly pursue the highest-grade materials and the utmost precision; instead, the goal should be to find the most economical solution that meets reliability requirements. For example, the material and process requirements for bearing cages in medium-load conveying equipment and high-speed turbomachinery will inevitably differ, and the pricing should reflect this difference rationally.

In summary, carbon graphite bearing frame, as a customized solution, represent the value of advanced material technology and precision manufacturing processes. It's not simply a standard product purchase, but a technical selection process based on specific operating conditions. A wise choice is to consider it a crucial investment in ensuring long-term, stable, and trouble-free operation of equipment under extreme conditions, thereby achieving the best balance between performance, lifespan, and total cost of ownership.
